Description
SpecificationsNetwork sectionDLNAFile FormatAirPlayMaximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)Maximum Power(8 ohms, 1 kHz, 10% THD)High Dynamic Power/Channel (8/6/4/2 ohms)Frequency ResponseTotal Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)Signal-to-Noise Ratio (CD)Audio In / OutUSB InputSubwoofer OutFM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)FM Signal-to-Noise Ratio (Mono/Stereo)ToP-ARTStandby Power ConsumptionDimensions (W x H x D)WeightReceiver / Integrated AmplifierNetwork sectionWi-FiBluetoothMinimum RMS Output Power

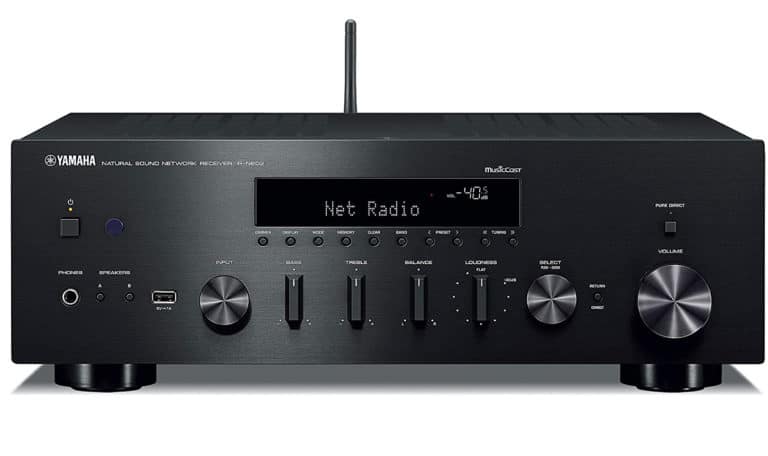

R-N602
R-N602
Specifications
Network section DLNA Version 1.5
File Format MP3, WMA, MPEG4 AAC, WAV, FLAC, AIFF, ALAC, DSD
AirPlay Yes
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) 105 W + 105 W
Maximum Power(8 ohms, 1 kHz, 10% THD) 115 W + 115 W
High Dynamic Power/Channel (8/6/4/2 ohms) 105 / 125 / 150 / 178 W
Frequency Response 0 ± 0.5 dB / 0 ± 1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) 0.015% (40 W / 8 ohms)
Signal-to-Noise Ratio (CD) 100 dB (Pure Direct on, 200 mV)
Audio In / Out 9 / 2
USB Input Yes
Subwoofer Out Yes
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) 3 µV (20.8 dBf)
FM Signal-to-Noise Ratio (Mono/Stereo) 65 dB / 64 dB
ToP-ART Yes
Standby Power Consumption 0.1 W
Dimensions (W x H x D) 435 x 151 x 392 mm; 17-1/8” x 6” x 15-7/16”
Weight 9.8 kg; 21.6 lbs.
Receiver / Integrated Amplifier
Network section Wi-Fi Yes (with Wireless Direct)
Bluetooth Yes (SBC/AAC)
Minimum RMS Output Power 80W + 80W (8 ohms, 20 Hz-20 kHz, 0.04% THD)
