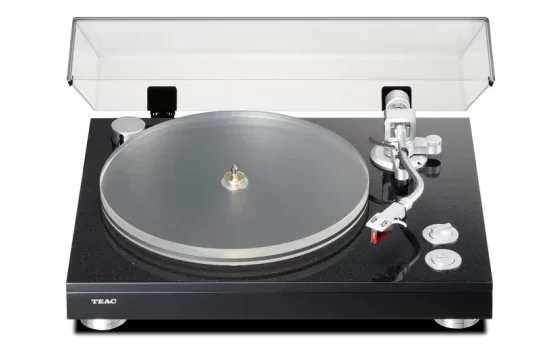

TEAC TN-5BB

The chassis has a multilayer structure combining a heavy 36mm MDF baseplate with high internal loss and a 12mm synthetic marble with outstanding rigidity. (The weight of the cabinet is 8.8kg.) Great feedback resistance has been realized with this excellent rigidity and vibration suppression. The tone arm and platter are mounted on the synthetic marble top plate while the motor, which causes vibration, is mounted to the MDF base plate. These separate structures using these materials as dampers isolate the tone arm and motor from each other. An overall structure with outstanding stillness has been realized that reduces the transmission of vibrations from the motor to the tone arm.

Based on our experience using Japanese washi paper turntable sheets and after repeated listening tests; we determined that the appropriate thickness, washi paper is the best material to use as a washer between the synthetic marble and the MDF for achieving optimal sound balance. By using washi rather than rubber or metal, the original vitality of the sound can be drawn out when records are played back.
