Description
Total Pieces
2
ACCESSORIES
Included Accessories

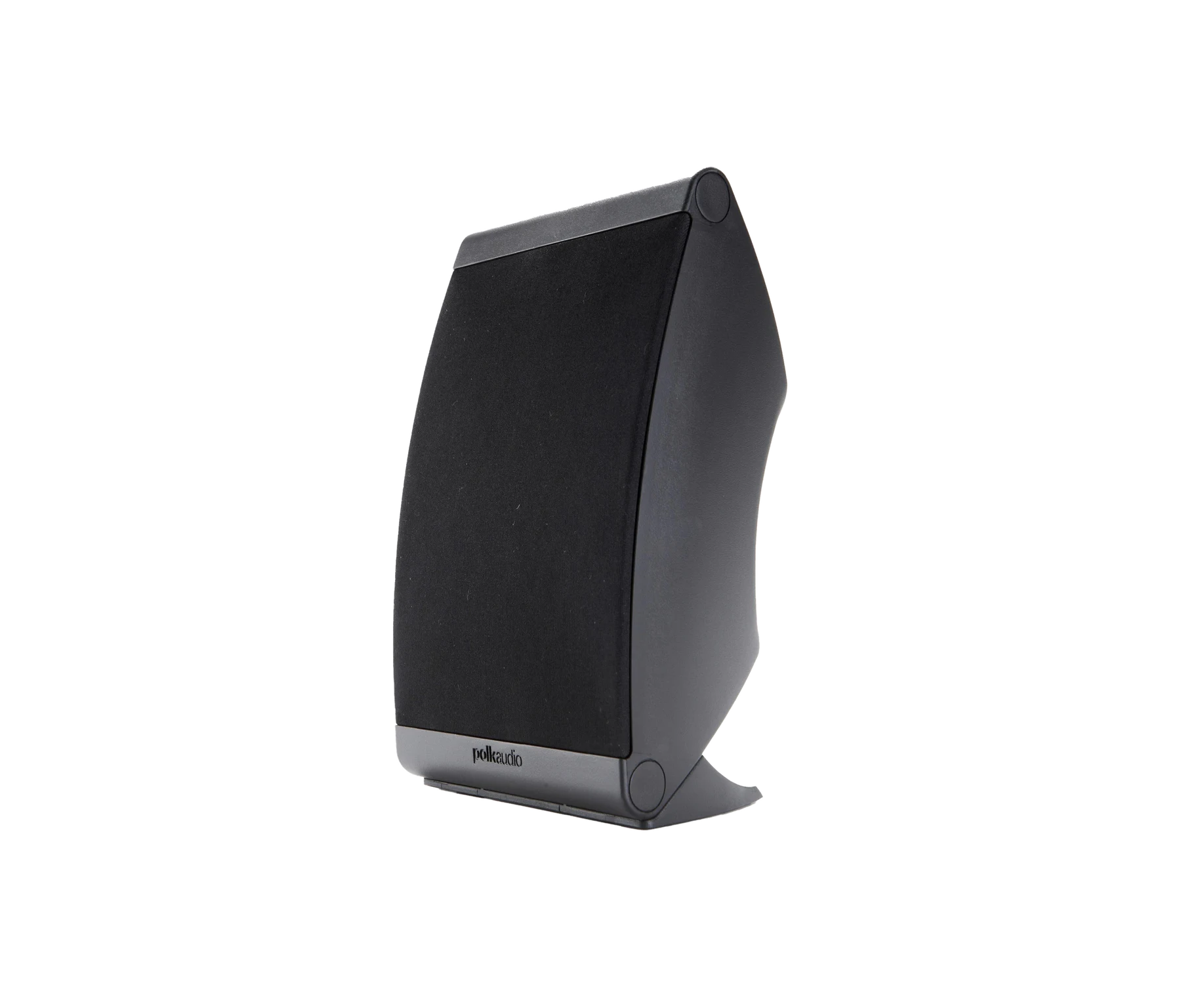

(1) Grille
(1) Removable Base
SHIPPING CARTONS
Carton : 1 11.25″ (28.58 cm) h x 11″ (27.94 cm) w x 11″ (27.94 cm) d – 10.5 lbs (4.76 kg)

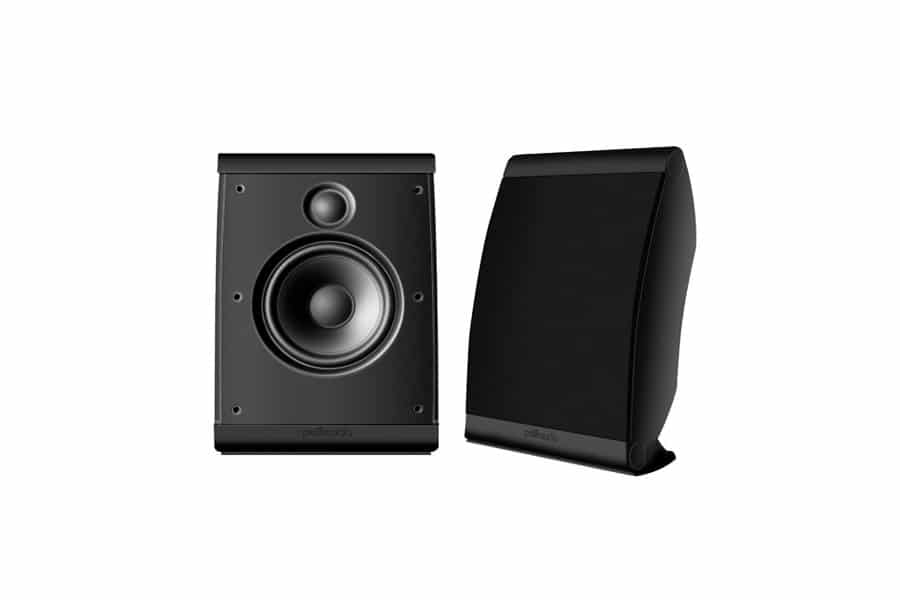

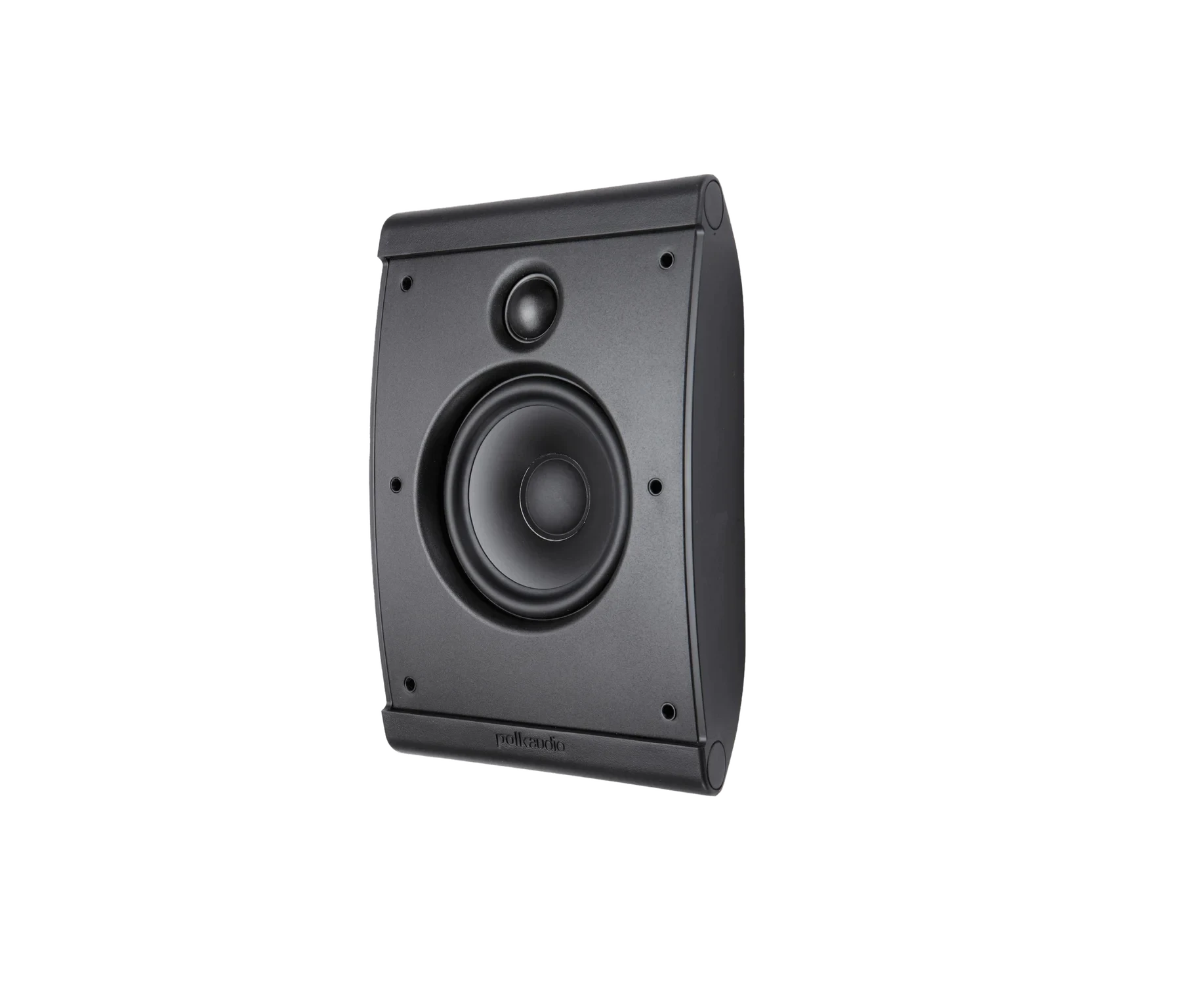

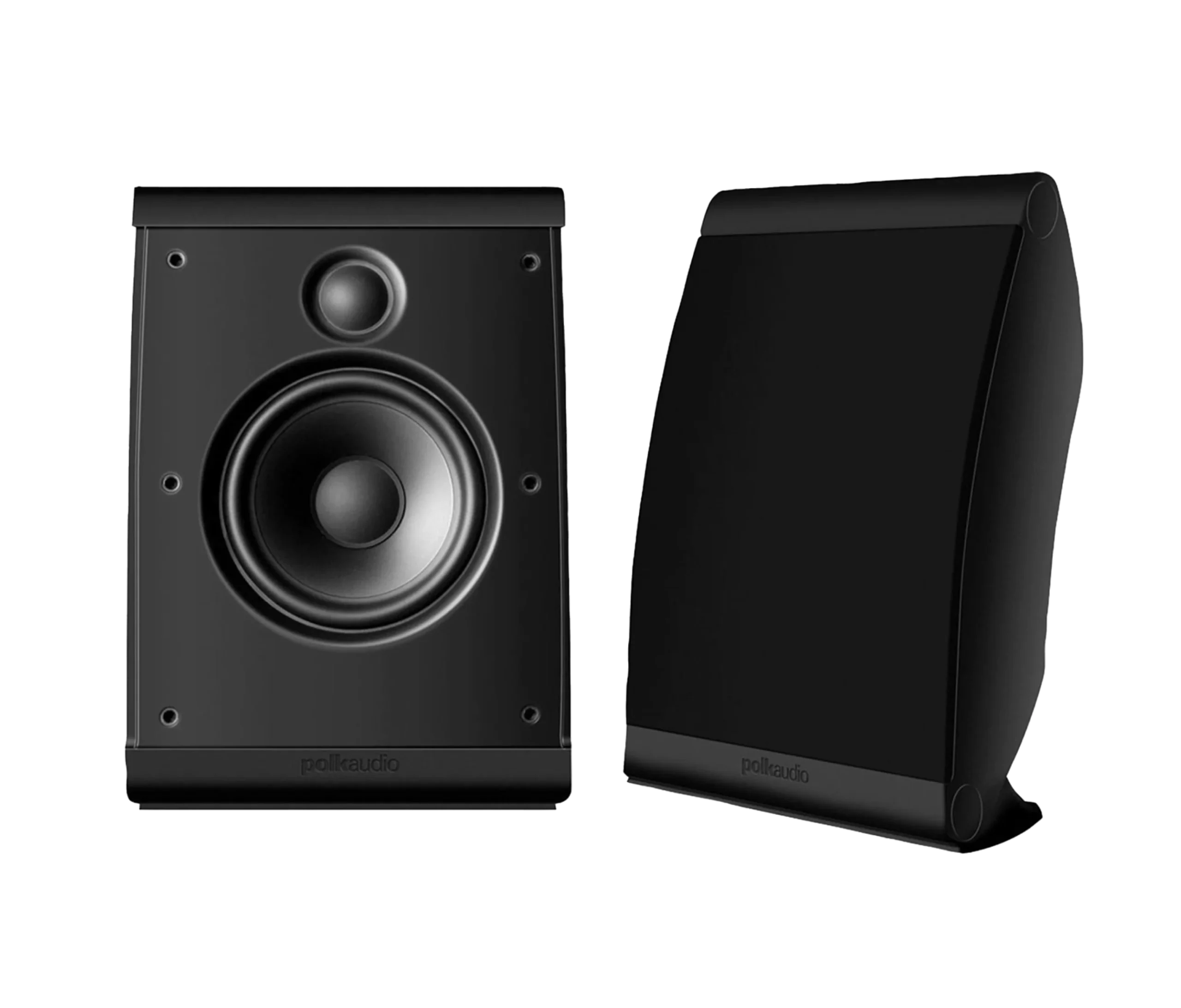

MULTI-APPLICATION LOUDSPEAKER
Qty Included : Pair
Orientation
Vertical
Horizontal
Height : 10″ (25.4 cm)
Width : 7″ (17.78 cm)
Depth : 4″ (10.16 cm)
Weight : 4 lbs (1.81 kg)
Front Array Driver Complement
(1) 4.5″ (11.43 cm) d (Round) – Mid/Woofer
(1) 1″ (2.54 cm) d (Round) – Tweeter
AUDIO QUALITY
Total Frequency Response : 80 Hz ? 25 Hz
Nominal Impedance : 8|||| ohms
Sensitivity (1 watt @ 1 meter) : 89 dB
Lower and Upper -3dB Limits : 100 Hz ? 22 Hz

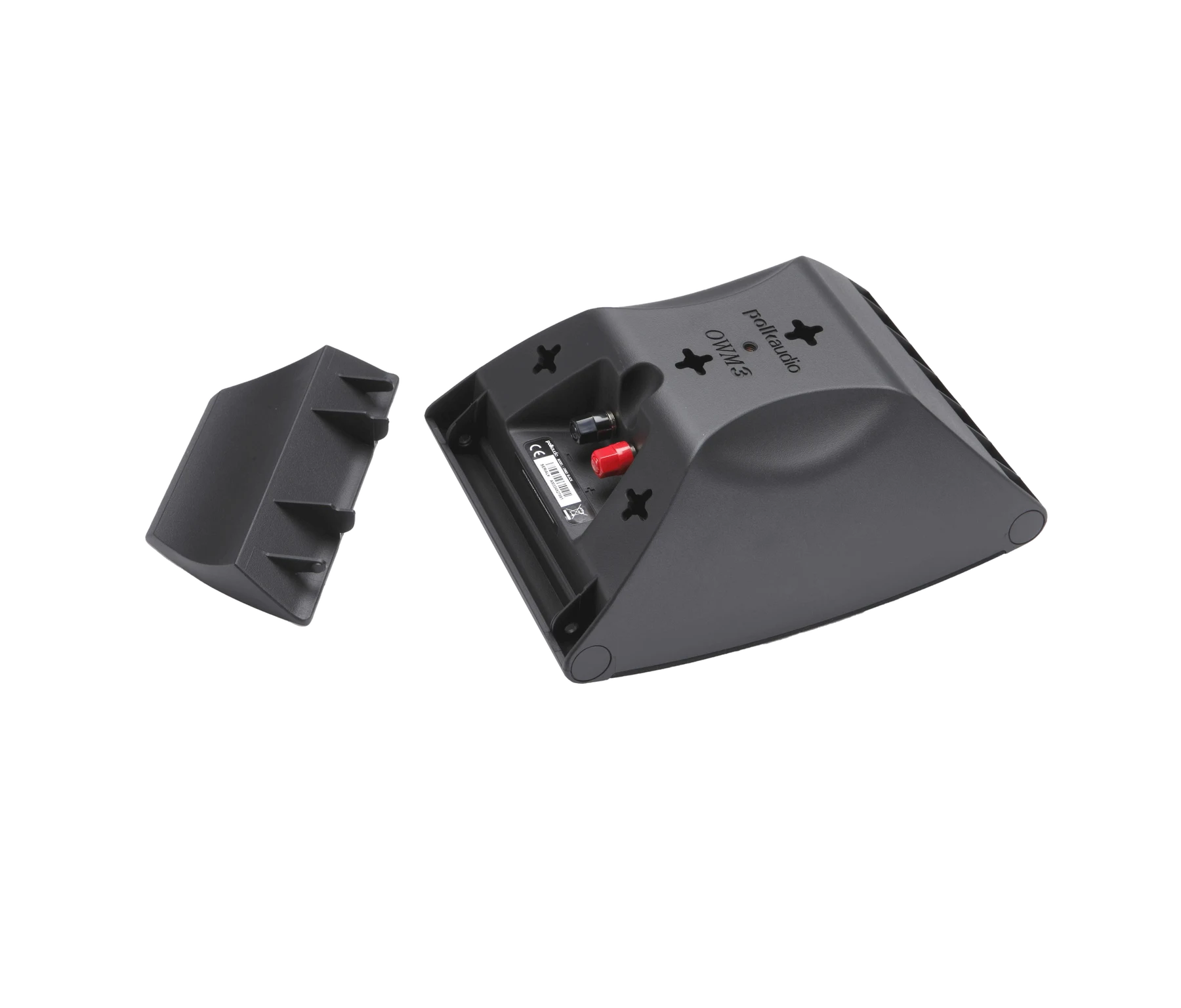

ANGLED WALL MOUNT MOUNT
Mounting Type : Keyhole Hanger
Available Orientations
Vertical
Horizontal
Mounting Location
Back of Speaker
Bottom of Speaker
Near: Bottom, Center
SWIVEL WALL/CEILING MOUNT MOUNT
Mounting Type : 1/4″ 20 Threaded Insert
Available Orientations
Horizontal
Vertical
Mounting Location
Back of Speaker
Bottom of Speaker
Near: Bottom, Center
ON-SHELF MOUNT
Mounting Type : Keyhole Hanger
Available Orientations : Horizontal
Mounting Location : Back of Speaker – Near: Center
CORNER MOUNT MOUNT
Mounting Type : Keyhole Hanger
