Description

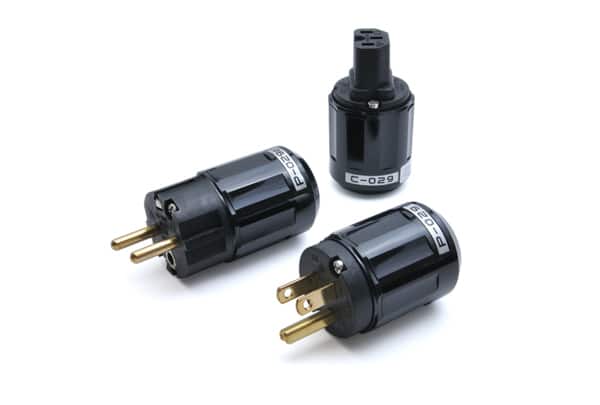

The entry class of P/C series with brass contacts and no plating
Materials
■Contacts
The basic material is pure brass for P-029/C-029. Its rigidty makes the contact secure.
※The blade of P-029 would often be oxidized because of its material, pure brass.
When it happens, you need to polish it out frequently by cotton cloth.
■Plating
P-029/C-029 don’t have plating on its contacts.
Body
■Body
30% glass filled PBT has excellent machine-ability and provides superior electrical isolation. The highly rigid body of the P-029/C-029 effectively attenuates high-speed vibrations. All screws, which were originally designed for P/C series, are made of highly rigid stainless steel which is non-magnetic substance. Moreover, the cable cannot be separated from the plug by a force less than 30kg, a significant safety feature.
■ Stainless screws
The screws of P/C series are all made of highly rigid stainless so its screw head doesn’t collapse even if you give them too much strength. In addition, because it is non-magnetic material, it helps to achieve hign S/N ratio without being magnetized at its conection part.
■Outer cover
The outer cover of P/C series is made of PC(PolyCarbonate) for its rigidity and hardness. It helps to attenuate tiny vibrations in quick response and reduce distortions by its superior mechanical strength.
Delivery within 5 to 7 Days
