Description
PCOCC-A conductor
PCOCC copper is a material that includes very few impurities and insures very low levels of signal disturbance. Because of its low incidence of grain boundaries, the signal passes without impediment or distortion. Heating and cooling the PCOCC wire under controlled circumstances yields a densely re-crystallized, highly pure structure called a μ conductor. The resulting product with a mirror finish applied is called PCOCC-A copper. This highly advanced product is made possible by the combined application of high technology and traditional Japanese craftsmanship.
Outer sheath
In addition to PCOCC-A conductor, the halogen-free sheath developed specifically for audio applications is applied for PA-02 with assistance of Furukawa Electric. This RoHS compliant sheath has excellent vibration damping property and high transmitting capability by ideal compounding ratio of materials.
For PA-02, we employed traditional balanced type shield wire structure and triple-layered inverted concentric structure which insures maximum density and uniformity of wire structure and infilling of internal space and preventing deformation among the wires.
For its insulation material, we employed formed polypropylene which is a low-dielectric material and insures reduction of loss of signal transmission.

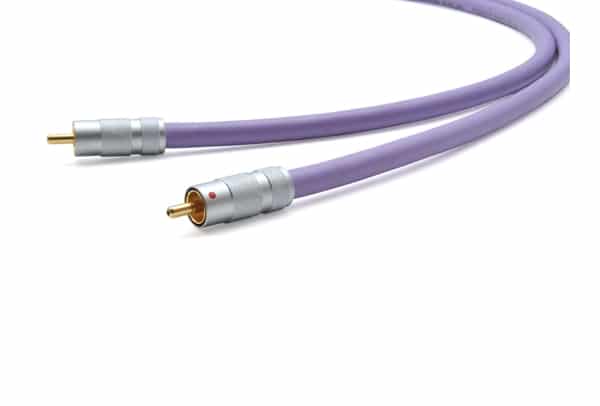

The RCA plug (PA-02 TR)
This new RCA plug was designed to maximize the performance of the PA-02 interconnect cable. It is made from RoHS compliant brass produced by NC machining and utilizes a nanotube structure for the center pin to provide maximum contact area. The contacts are plated with 24k gold. Internal insulating materials are made from low-dielectric PTEE to extenuate the loss of signal transmission.
Each component of PA-02 TR is produced and processed in Japan with confidence in our standard – “Made in Japan”.
