Description
Materials
■ Contacts
The basic material is deoxidized phosphor bronze (1.4mm thick) for strength and secure contact. When connected, they can take over 7kg load. Surface is thoroughly polished twice.
■ Plating
The manufacturing process is started from foundation coating. The material which was punched out as a part is polished by hand piece by piece after machined barrel-polishing.
The plating of the seires are:
C-037 – a combination of silver (1.5micron) and rhodium (0.3 micron).
C-046 – a combination of 24k gold (1.5micron) and palladium (0.3 micron).
C-079 – 24k gold （2.0μ)
Body
■ Body
30% glass filled PBT has excellent machine-ability and provides superior electrical isolation. The highly rigid body effectively attenuates high-speed vibrations. All screws, which were originally designed for P/C series, are made of highly rigid stainless steel which is non-magnetic substance. Moreover, the cable cannot be separated from the plug by a force less than 30kg, a significant safety feature.
■ Stainless screws
The screws of P/C series are all made of highly rigid stainless so its screw head doesn’t collapse even if you give them too much strength. In addition, because it is non-magnetic material, it helps to achieve hign S/N ratio without being magnetized at its conection part.
■ Outer cover
The outer cover of P/C series is made of PC(PolyCarbonate) for its rigidity and hardness. It helps to attenuate tiny vibrations in quick response and reduce distortions by its superior mechanical strength.

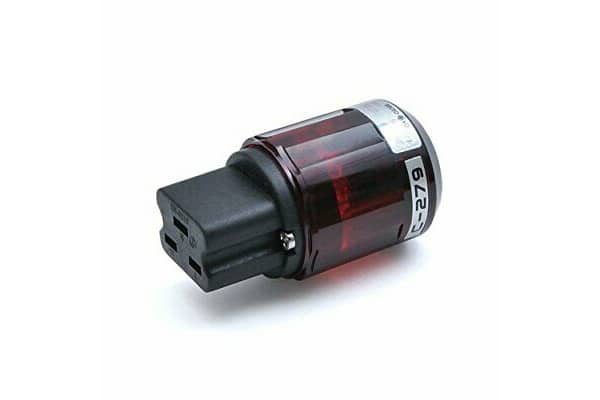

SPEC C-237 / 246 / 279
Model
C-246
Plating
Silver（1.5μ) + Rhodium(0.3μ)
install cable O.D.
min 6.5mm max 17.0mm
Maximam wire gauge
AWG10(5.5sq)
Rated V/A
125V・20A <PS>E
250V / 16A CE
Release Date
2007/09/20
Model
C-237
Plating
24K gold（1.5μ) + Palladium(0.3μ)
install cable O.D.
min 6.5mm max 17.0mm
Maximam wire gauge
AWG10(5.5sq)
Rated V/A
125V・20A <PS>E
250V / 16A CE
Release Date
2007/09/20
