Description

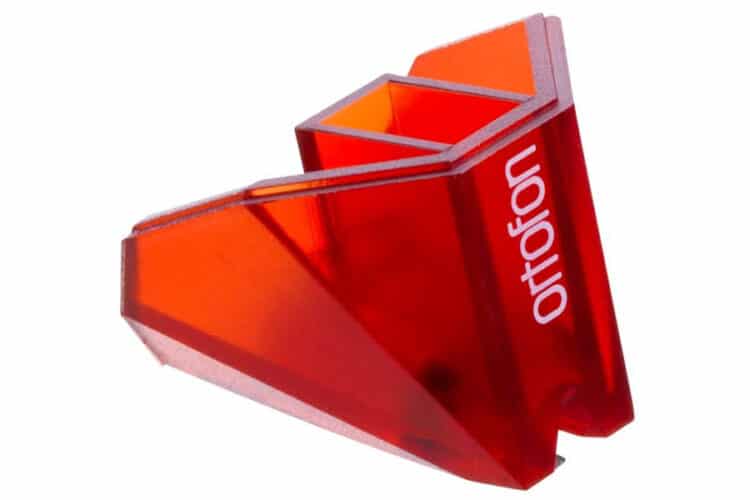

Stylus 2M Red
Frequency response – 20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force *) – 70 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 µm
Equivalent stylus tip mass – 0.5 mg
Tracking force range – 1.6-2.0 g (16-20 mN)
Tracking force, recommended – 1.8 g (18 mN)
Tracking angle – 20°
*) Typical value
Stylus colour – Red
Recommended for following cartridges – 2M Red, interchangeable with 2M Blue.
