Description

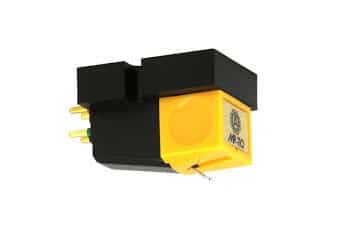

Nagaoka MP-110 Phono Cartridge Specifications
– Type: Moving magnet
– Cantilever: Aluminum alloy
– Stylus type: Superfine polished elliptical bonded diamond with 0.4 x 0.7 mil radii
– Weight: 6.5 g
– Output voltage @ 1kHz,5cm/sec: 5mV
– Frequency response: 20Hz-20kHz
– Channel balance @ 1kHz: > 1.5dB
– Channel separation @ 1kHz: > 23dB
– Recommended loading: 47k ohms
– Dynamic compliance: 6.0 x 10-6 cm/dyne
– Static compliance: 18 x 10-6 cm/dyne
– Tracking force range: 1.5 – 2.0 g
– Break-in period: 30 hours
– Stylus replacement: Nagaoka JN-P110
