Description

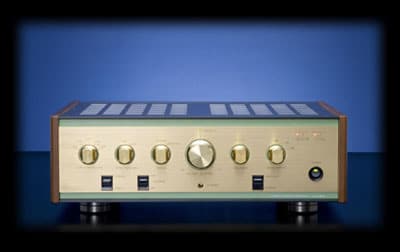

CS-600 SPECIFICATIONS
TUBES EQUIPPED (4) 6L6GC (5881) SOVTEK, (EL34/6CA7 – Option)
(4) 6CS7
(1) 6CJ3
OUTPUT POWER 32W x 2 (6L6GC) at 1KHz.
28W x 2 (EL34) at 1KHz.
FREQUENCY RESPONSE 10Hz – 100KHz. (-0.1dB)
DISTORTION 0.7%(10W)
INPUT SENSITIVITY 900mV at 20W
OUTPUT IMPEDANCE 4/6/8/16 Ohms (Selectable)
POWER CONSUMPTION
WEIGHT 22.5 Kgs.
DIMENSIONS 450 (W) X 360 (D) X 142 (H) mm
ATTACHMENT Detachable AC Power Cable x 1
