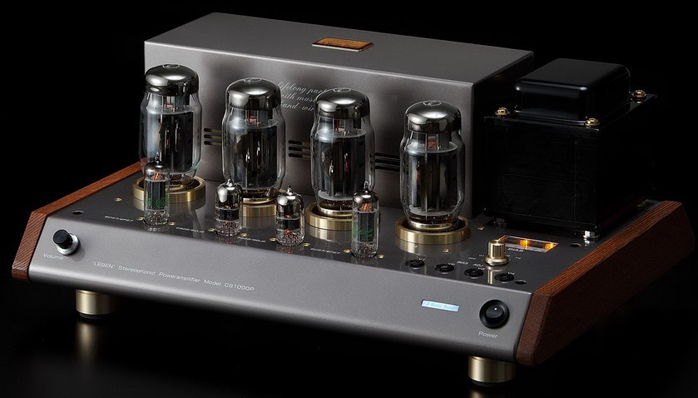

Leben CS-1000P Stereo Power Amplifier

Rs.920,000

High power output tube KT120(Super KT88)
100W/ch(1KHz) at Pentode circuit (70W/ch at Triode).

Pentode/Triode selector switch
Bias adjustment with a Cathode-direct meter
Several type of output tubes are applicable by adjusting the cathodal electric current.

Newly developed Orient-core output transformer
A minimum loss and a Superior high-frequency response.
Flat and wide Frequency Response
A wide frequency response from 10Hz to 150KHz(-0dB) caters for digital audio formats such as SACD/HDCD.

High rigidity solid aluminum insulators
OTHER FEATURES
Super-high sensitivity bias meter made by a long-established manufacturer.
High-grade Metal glaze resistorals of below 1% error margin.
High-grade 41-steps Detent Volume of ALPS.

Delivery:- 6 to 8 Weeks

Available on backorder

Categories: , ,

Description

CS-1000P SPECIFICATIONS
TUBES COMPLIMENT KT120 x 4
6922/6DJ8(ECC88) x 2
6CG7/6FQ7 x 2
OUTPUT POWER 100W x 2 at 1KHz.
FREQUENCY RESPONSE 10Hz – 150KHz. (-3dB)
INPUT SENSITIVITY 0.4V at 50W
INPUT IMPEDANCE 100K Ohms.
OUTPUT IMPEDANCE 4/6/8/16 Ohms (Selectable)
POWER CONSUMPTION
WEIGHT 23.5 Kgs.
DIMENSIONS 455 (W) X 200 (H) X 335 (D) mm
ATTACHMENT Detachable AC Power Cable x 1

Brand

Leben
