KEF – REFERENCE 8b SUBWOOFER

Rs.1,200,000

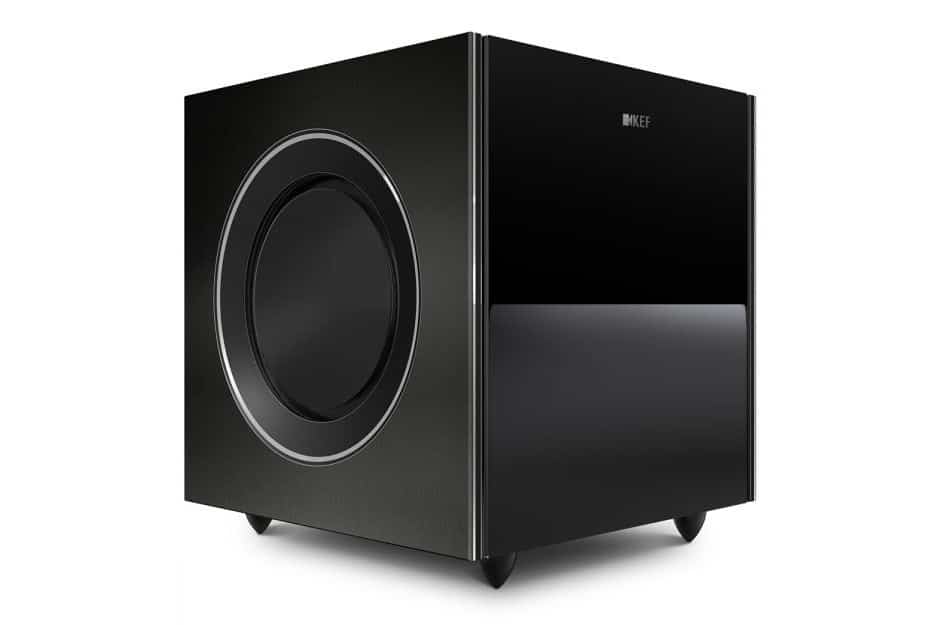

KEF REFERENCE 8B Twin 9 inch driver ‘force-cancelling’ subwoofer

Delivering exceptional bass precision and control with zero distortion, Reference 8b is a truly extraordinary subwoofer. For power with accuracy the Reference 8b sub has two 500W Class D amplifiers, each driving a 228mm (9 inch) long-throw, ultra-low distortion driver. These are connected back-to-back in a heavily braced, acoustically inert cabinet. The result is low distortion bass with effortless body and weight. Sold as a single unit.
Categories: ,

Description

WEIGHT
34kg (75lbs.)

DIMENSION
H x W x D : 398 x 365 x 429 mm (15.7 x 14.4 x 16.8 in.)

UNIT MEASUREMENT
Pair

FINISHES
Deep Piano Black

INPUTS
RCA phono sockets
Analog XLR socket
Speaker level inputs

FREQUENCY RANGE
Free Field: 18Hz (-6dB)

FREQUENCY RESPONSE
24Hz at 90dB output in free-space mode (±3dB)

NET INTERNAL VOLUME
23L

MAXIMUM OUTPUT
110dB (peak sound pressure level at 1m 50Hz)

AMPLIFIER TYPE
2 x 500W Class D with switched mode power supply and DSP based control section

DRIVE UNITS
LF 2 x 225 mm (9in.)
POWER REQUIREMENTS
100V – 120V / 220V – 240V ~50/60Hz

POWER CONSUMPTION
1000W

LINK OUT
RCA phono socket

VARIABLE LOW PASS FILTER
Variable frequency: 40Hz to 160Hz
Variable slope: 12dB/oct, 18dB/oct, 24dB/oct
LFE mode: 350Hz, 18dB/oct

Brand

KEF
