Rs.2,300,000

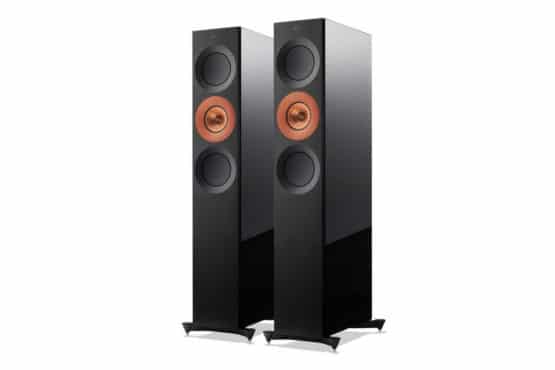

Reference 3 has the uncanny ability to generate an intricate, emotionally compelling three-dimensional soundstage that places you right at the heart of the original performance.
Two 165mm (6.5 inch) bass drivers positioned above and below KEF’s latest 125mm (5 inch) MF/HF Uni-Q driver array means that fidelity across the midrange and treble is outstanding. Everyone in the room can enjoy the same rich, spatially precise imagery and it puts them right at the heart of the original performance.
Sold in Pairs
WEIGHT
51.3kg (113.1lbs)
DIMENSION (H X W X D)
H x W x D with grille and terminal : 1155 x 205 x 470 mm (44.5 x 8.1 x 18.5 in.)
H x W x D with grille, terminal & plinth : 1202 x 349 x 470 mm (47.3 x 13.7 x 18.5 in.)
DESIGN
Three-way bass reflex
IMPEDENCE
8 Ohms (min.3.2 Ohms)
UNIT MEASUREMENT
Pair
FREQUENCY RANGE
Typical in room bass response: 28Hz (-6dB)
Free Field – Short port: 38Hz – 45kHz (-6dB)
Free Field – Long port: 35Hz – 45kHz (-6dB)
CROSSOVER FREQUENCIES
350Hz, 2.8kHz
FREQUENCY RESPONSE
43Hz – 35kHz (±3dB)
HARMONIC DISTORTION
2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz
MAXIMUM OUTPUT
113.5 dB (peak sound pressure level at 1m with pink noise)
AMPLIFIER CLASS
50-300W
NOMINAL IMPEDANCE
8Ohms (min.3.2Ohms)
SENSITIVITY
87.5dB (2.83V/1m)
DRIVE UNITS
Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units:
LF: 2 x165mm (6.5in.) aluminium
Bass Driver:
LF: 4x 165mm (6.5in.) hybrid aluminium
CROSSOVER FREQUENCIES
400Hz, 2.9kHz
FINISHES
Black Gloss / White Gloss / Walnut
