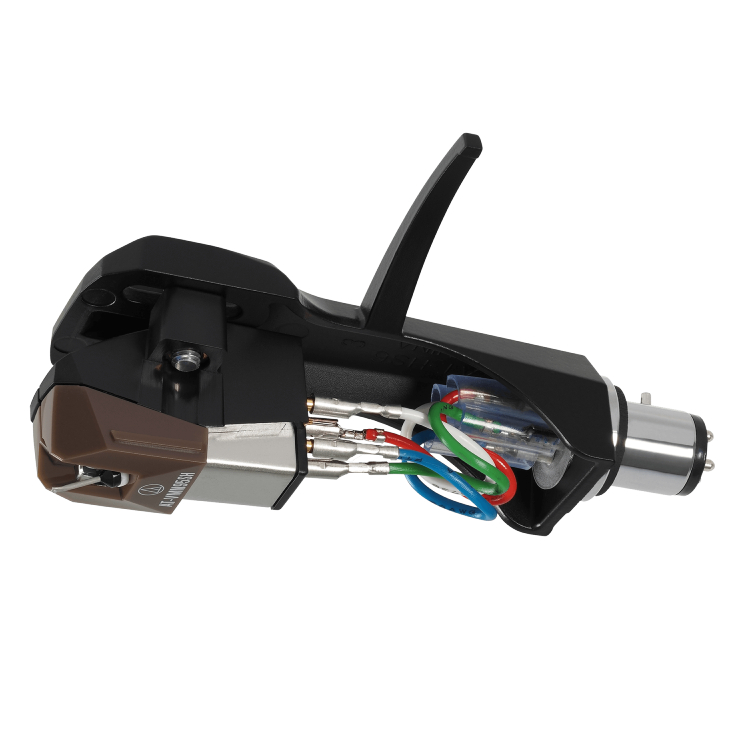

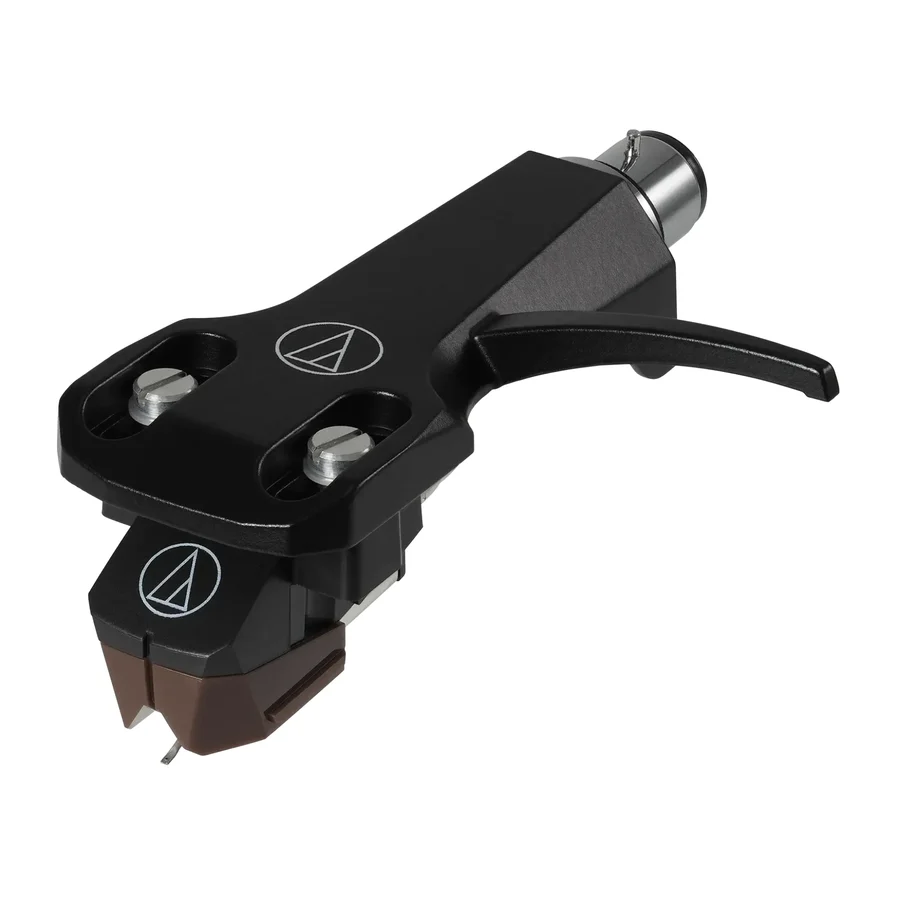

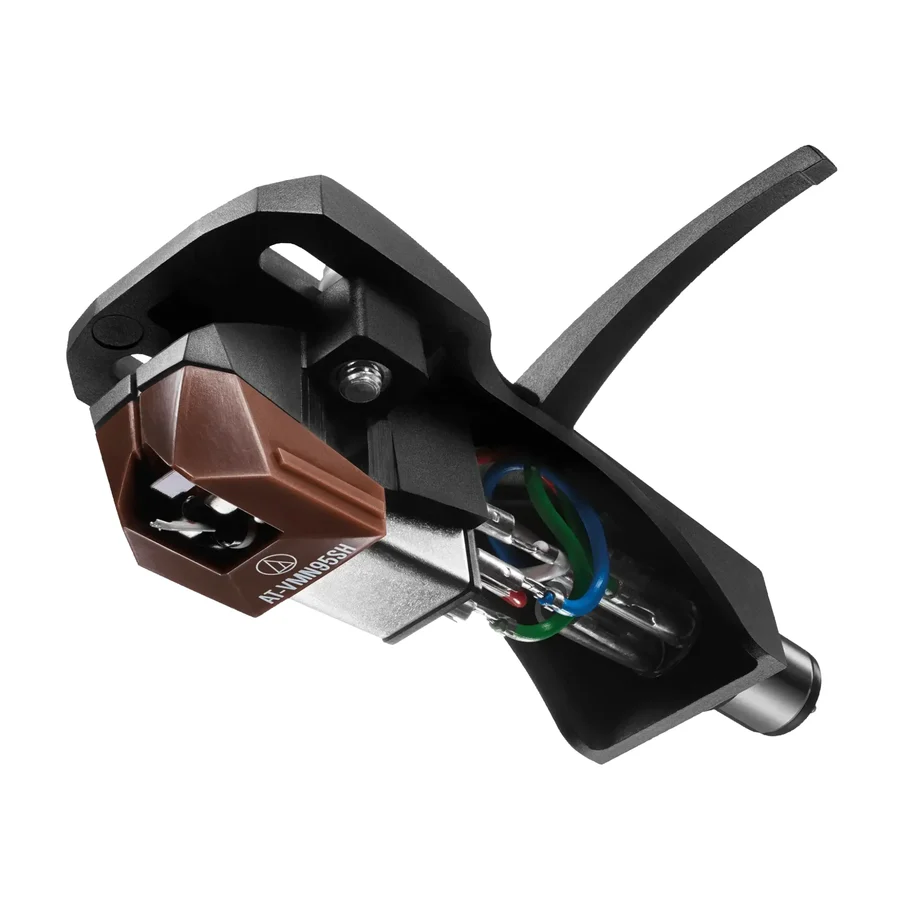

Audio Technica AT-VM95SH/H – Headshell/Cartridge Combo Kit
Audio-Technica AT-VM95SH/H combines a VM dual moving magnet cartridge with a Nude Shibata stylus and universal headshell. It delivers detailed vinyl playback with a 20–25,000 Hz frequency response and 3.5 mV output. Plus, the pre-mounted design makes installation simple.
Technical Specifications —
- Cartridge Type: VM Stereo Dual Magnet
- Stylus Type: Nude Shibata
- Stylus Size: 2.7 × 0.26 mil
- Cantilever: Aluminum pipe
- Frequency Response: 20–25,000 Hz
- Output Voltage: 3.5 mV at 1 kHz, 5 cm/sec
- Channel Separation: 23 dB at 1 kHz
- Tracking Force: 1.8–2.2 g; 2.0 g standard
- Recommended Load: 47,000 ohms; 100–200 pF capacitance
- Set Weight: 15.5 g; AT-HS6BK ½-inch-mount headshell
Original price was: ₹22,450.₹19,800Current price is: ₹19,800.
Save ₹2,650 (12%)
Product Details
Audio-Technica AT-VM95SH/H brings detailed, high-quality vinyl playback to your turntable. It combines the AT-VM95SH dual moving magnet cartridge with an AT-HS6BK universal headshell. Moreover, its Nude Shibata stylus tracks the record groove accurately and supports a wide 20–25,000 Hz frequency response.
The aluminum cantilever adds a practical, durable design. With 3.5 mV output and a 1.8–2.2 g tracking-force range, it offers easy setup and reliable performance. Furthermore, the pre-mounted headshell and cartridge simplify installation. Choose the AT-VM95SH/H Shibata cartridge for a straightforward vinyl upgrade.
SPECIFICATIONS-
Cartridge & Stylus
| Frequency Response | 20-25,000 Hz |
| Channel Separation | 23 (dB at 1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Nude square shank |
Mounting Feature
Half-inch mount
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 3.3 k ohms (1 kHz) |
| DC Resistance | 485 ohms |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 3.5 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | 2.7 x 0.26 mil Shibata |
| Cantilever | Aluminum pipe |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 10 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | Half-inch |
| Dimensions | Cartridge 17.2 mm (0.68″) H × 18.9 mm (0.74″) W × 28.3 mm (1.20″) D; Cartridge & Headshell 21.2 mm (0.83″) H × 21.4 mm (0.84″) W × 62.4 mm (2.46″) D |
| Accessories Included | Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver |
| Recommended Load Capacitance | 100 to 200 pF |
| Replacement Stylus | AT-VMN95SH |
| Stylus Size | 2.7 x 0.26mil |
| Type | VM Stereo Dual Magnet |
| Weight | Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz) |
| Wire Used for Coil | T.P. Copper |
Additional information
| Condition | New |
|---|---|
| Finish | Black |
