Description

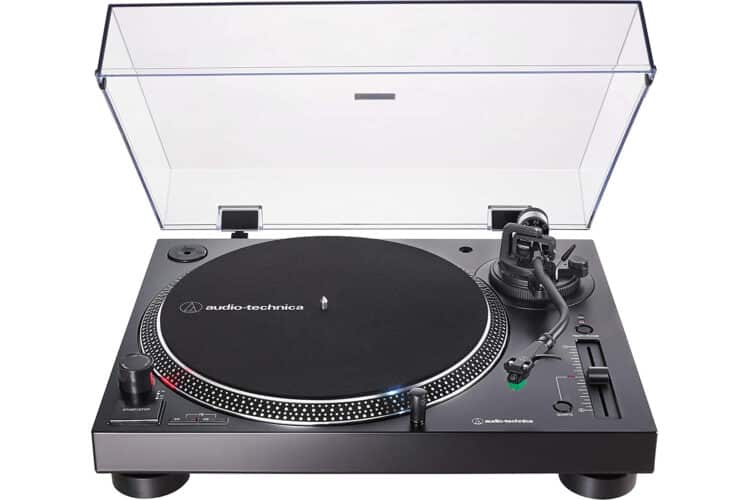

Turntable
Type 3-speed, fully manual operation
Motor DC servo motor
Drive Method Direct drive
Speeds 33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter Die-cast aluminum
Starting Torque >1.0 kgf.cm
Braking System Electronic brake
Wow and Flutter <0.2% (WTD) @ 3 kHz (JIS)
Signal-to-Noise Ratio >50 dB
Output Level Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain 36 dB nominal, RIAA equalized
USB Function A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable;
Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements 100 to 240 V, 50/60 Hz, 1.5A Max.
Dimensions 452.0 mm (17.80″) W x 352.0 mm (13.86″) D x 141.6 mm (5.57″) H
Weight 8 kg (17.6 lbs.), without dust cover
Accessories Included AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2′) USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
Notes Tonearm type: Balanced S-shaped tonearm with detachable headshell
Effective arm length: 230.5 mm
Overhang: 16 mm
Tracking error angle: Less than 3 degrees
Applicable cartridge weight: 3.5-8.5 g
Anti-skating range: 0-4 g
Replacement Stylus: AT-VMN95E
USB operation system requirements
PC or Mac with an available USB port (USB1.1 or higher)
Windows 7 or above, or Mac OS X or above
